TEMVu Slide with 20 nm SiN TEM Window,Amorphous 100um thick frame,20nm thick SiN film[(8) 100x100sq+

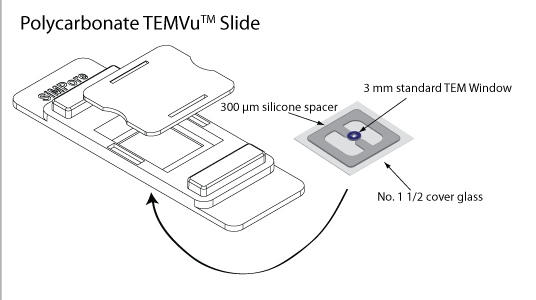

TEMvu Slide:
Modified plastic slide with well
No. 1.5 cover glass with an attached TEM SiN membrane window grid
Removable slide cap
TEM SiN membrane grid specs:
20 nm thick Low-Stress Silicon Nitride film
100 micron thick frame, fits 3 mm sample holders
(8) 100 x 100 micron square
(1) 100 x 350 micron square, Guaranteed intact
Amorphous, non-porous
Package Size: 1 TEMvu Slide, 10 SiN membrane grids

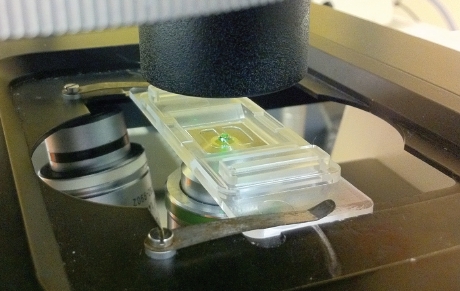

TEMVu™ Slides allow you to prepare your TEM window grid for light and fluorescence microscopy prior to performing TEM. Ideal for applications in fluorescent nanoparticle imaging and live cell imaging/staining prior to TEM.
