Suspended Monolayer Graphene on 300 Mesh TEM Grids (Quantifoil Gold) - Pack 4 grids

Suspended Monolayer Graphene on 300 Mesh TEM Grids (Quantifoil Gold) - Pack 4 grids
Suspended Monolayer Graphene on 300 Mesh TEM Grids (Quantifoil Gold) - Pack 4 grids
Suspended Monolayer Graphene on 300 Mesh TEM Grids (Quantifoil Gold) - Pack 4 grids - - alt view 1
$370.44
AvailabilityIn Stock
ItemGQAU4-AB
Product is temporarily unavailable. Please come back and check in the future. Orders placed will be shipped in the order that they are received once the product is back in stock.

Monolayer Graphene on Gold Quantifoil TEM Grids - Pack 4 grids

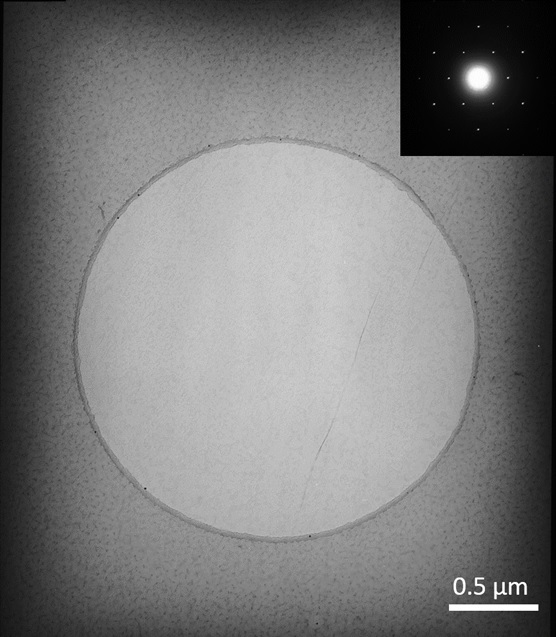

The monolayer graphene is grown by CVD and transferred onto a Quantifoil TEM grid. The graphene is suspended over 2μm holes. Typical applications include Graphene/polymer composite materials, Batteries, Biomedical, Solar cells, Supercapacitors, Support for metallic catalysts, Low permeability materials, Biosensors, Multifunctional materials and Graphene research.

The four grids come in a Cryo Grid box, which is typically used for storing and transferring vitrified cryo-EM specimens.

Graphene Film:

  • Transparency: > 97%
  • Number of graphene layers: 1
  • Coverage: > 95%
  • Thickness (theoretical): 0.3 – 4 nm
  • Grain size: Up to 20 μm

TEM Grid Substrate:

  • Type: QUANTIFOIL ® R 2/4
  • Hole size: 2 μm
  • Space between holes: 4 μm
  • Diameter: 3mm
  • Coating: Au coated
  • 300 mesh gold grid

Quality control: All grids are processed in Clean Room Class 1000 and are examined using Raman Spectroscopy and Optical Microscopy to ensure a high quality and reproducibility of the graphene.
