Anodic Aluminum Oxide Anisotropic membrane filters, 2-4nm pore, 13mm dia, pk20
| Availability | In Stock |
|---|---|
| Item | AAOA213-CA |
InRedox Anodic Aluminum Oxide Anisotropic membrane filters, 2-4nm pore, 13mm dia, pk20
Anisotropic Anodic Aluminum Oxide (AAO) contain two layers with different pore structure integrated into a monolithic membrane:
Underlying Support Layer – contains larger pores that provide mechanical strength and high permeance.
Active Layer – an upper thin layer of highly uniform pores
Anisotropic pore structure supports size-based separation in 2 to 10 nm range and makes anisotropic membranes suitable for nanofiltration and ultrafiltration applications. Anisotropic AAO membrane filters are currently available with pore diameters of 2-4nm, 5nm, and 10nm.
These membrane filters are less brittle than similar ceramic membrane filter products ensuring easier handling, usage, and less loss of product or samples during preparation.
Membrane Features
• Precise and reproducible pore geometries
• Pore size from 2 nm to 200 nm
• Narrow pore size distribution, sharp molecular weight cutoff
• Anisotropic (bi-layer) pore structure
• Smooth flat surface, low fouling, straight pores
• Optically transparent when wet, low autofluorescence
• Surface terminated with -OH-groups for binding protocols
• Naturally hydrophilic, no extractables or leachables
• Biocompatible, popular substrate for cell culturing
• Excellent bath-to-batch consistency
|
Pore Geometries for Anisotropic AAO Membranes |
|||||
|
Parameter |
Active Layer |
Support |
Tolerance |
||
|
Pore Diameter (nm) |
2-4 |
5 |
10 |
100-150 |
±(10%+2nm) |
|
Pore Period (nm) |
6 |
12 |
26 |
250 |
±(15%+5nm) |
|
Pore Density (cm-2) |
3·1012 |
9·1011 |
1.6·1011 |
2·109 |
±20% |
|
Porosity (%) |
5-15 |
5-15 |
12 |
15-20 |
±3 |
|
Attributes of Anisotropic AAO Membranes |
|
|
|
|
|
Size (mm dia) ±0.2 mm |
13, 25 |
|
Thickness (µm) ±(10% +1μm) |
50 |
|
Nominal weight (mg/cm2) |
10 to 20 |
|
Burst strength (psi) |
50 to 200 (depending on pore size) for 50 µm membrane over 3 mm span |
|
Max Service Temp (°C) |
400 |
|
pH range |
5-8 |
|
Solvent Resistance |
Excellent (can be used with most organic solvents) |
|
Autoclavable? |
Yes |
|
Air Permeance (cm/s/Pa at 20°C) |
10-8 to 10-4 (depending on pore size and porosity) |
|
Water Permeance (cm/s/Pa at 20°C) |
10-10 to 10-6 (depending on pore size and porosity ) |
|

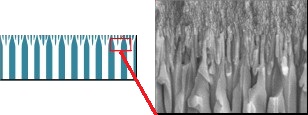

Monolithic bi-layer pore structure: Active layer (1-5% of thickness) with pore diameter 2-10 nm for size separation Support layer (95%-99% of thickness) with pore diameter 150-200 nm to provide mechanical support with high flow Applications: nano-, ultra & microfiltration, bioseparation, cell culturing, epiflourescence, electron microscopy, bioanalysis |
|
.jpg)
Other pore sizes, filter diameters may be available. Please contact SPI Supplies for further information.
