Tungsten Disulfide (WS2), 1 Single Crystal Piece, 10mm2

Tungsten Disulfide (WS<sub>2</sub>), 1 Single Crystal Piece, 10mm<sup>2</sup>
Tungsten Disulfide (WS2), 1 Single Crystal Piece, 10mm2
Tungsten Disulfide (WS<sub>2</sub>), 1 Single Crystal Piece, 10mm<sup>2</sup> - - alt view 1 Tungsten Disulfide (WS<sub>2</sub>), 1 Single Crystal Piece, 10mm<sup>2</sup> - - alt view 2
$457.98
AvailabilityIn Stock
Item4275WS2-AB

Single crystal WS2 for mechanical exfoliation.

Two-dimensional transition metal dichalcogenides.
Minimum crystal size: 3mm x 3mm in lateral dimensions.
Thickness: approximate 0.1mm.
Stacking configurations: 2H ( AA′).

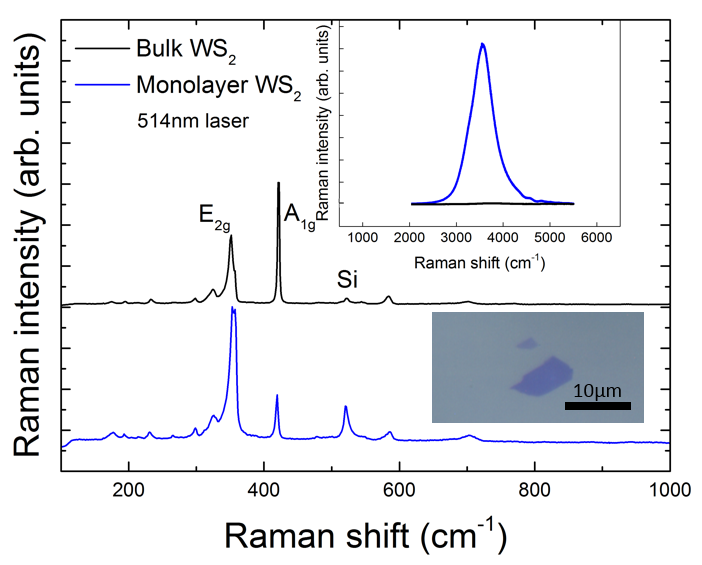

The Raman spectrum of bulk WS2 shows two prominent peaks: the in-plane E2g mode at ~352cm-1 and the out-of-plane A1g mode at ~420cm-1. These peaks are characteristic of hexagonally crystallized WS2. When exfoliated in monolayer, the two peaks come closer and there is strong photoluminescence around 1.9eV.
