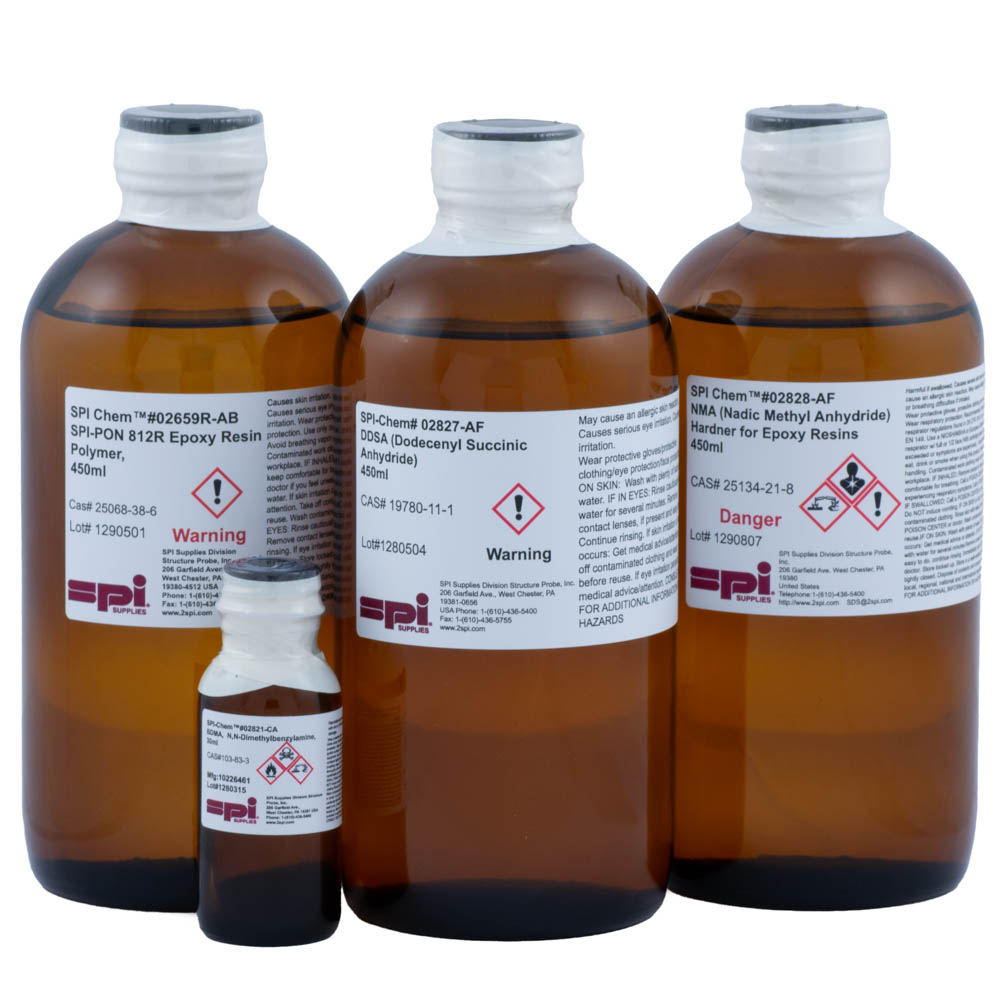

SPI-Pon 812R Kit, BDMA Formulation, with DDSA and NMA to make 1375 ml

BDMA Modified Kit:

This BDMA formulation is favored by some researchers because of its lower viscosity, resulting in better infiltration of difficult samples. The BDMA formulation is a slight variation on our popular SPI-Pon 812 Embedding Kit which contains DMP-30.

There are two potential drawbacks to the ordering of the BDMA formulation:

In terms of shipping costs, BDMA is a "dangerous goods" material.  DMP-30 is not. Therefore, under some circumstances, the shipment of BDMA could be a lot more costly than the shipment of DMP-30.

When making up the working mixtures, there have been reports that the BDMA mixtures got more viscous more quickly than DMP-30 mixtures, all else being equal.

Background on SPI-Pon 812 Resin:

SPI-Pon 812R was originally developed as a direct substitute for the epoxy resin known as  SPI-Pon 812, which itself was a direct subsitute for "EPON® 812". At the time of its discontinuation by Shell Chemical, it was the most widely used embedding resin in the world for use in preparing samples for electron microscopy. With the introduction of SPI-Pon 812R, we are into the 3rd generation of the original EPON-812 resin.

SPI-Pon 812R is the preferred resin for samples that have solubilities to resin monomers (that is, the samples can potentially be dissolved by the monomer or combination of monomers). Special methods have been published for applications with these kinds of samples. SPI-Pon 812R  resin has great versatility. It can be the embedding resin of choice for biological tissue material as well as materials such as catalysts or plastic samples. No other resin can be used over such a broad range of samples representing such a wide range of hardness.

Most users of the SPI-Pon resin kit cure their samples at 60°C. Faster cures are possible at slightly higher temperatures, up to 70°C. SPI-Pon 812R in the cured state is completely inert with regards to osmium tetroxide exposure and is the preferred resin for those staining with osmium tetroxide. This is the case for both life science and materials science samples.

Note about bubbles in the final cured block:

A common "problem" with resin monomer embedding materials is the presence of bubbles in the final cured block. This is usually the result of retained moisture in the sample. Another source of bubbles is mixing of the components too vigorously. Depending on the sample itself, there are different ways one can use to remove residual moisture. We have found that no matter the source, pumping on the mixed ingredients for a short time with a mechanical pump vacuum will cause the bubbles to rise and exit the system. The precise amount of time this takes will be determined by how fast the system polymerizes.

Hardness vs. viscosity:

Another one of the tradeoffs faced regularly by microscopists is that of resin viscosity vs. the hardness of the final block. By way of the addition of excess hardener, one can make a block out of SPI-Pon 812R that is as hard as any resin and certainly harder than a lot of resins. Polymerizing under such conditions does result in a higher viscosity of the resin and therefore potentially less effective infiltration. But we always recommend this as the place to start since the alternatives are both more expensive and more complicated to use. For a lower viscosity embedment, we recommend trying SPI-Chem Low Acid GMA,TEM formulation. The GMA monomer has a viscosity slightly less than that of water.

Particle "pull-out":

When embedding hard spherical particles, sometimes the particles themselves are pulled out by the action of the knife, so that the sections exhibit just the "ghosts" or holes where the particles once were. In order to reduce the tendency for this to happen, we recommend the use of SPI-Chem™ (3-glycidoxypropyl) trimethoxysilane.

An understated potential safety risk:

We are addressing now the cured block, something that to most people is about as inert of a material as one will find. A standard practice in many laboratories is to use a small jeweler's or small hack saw to cut the block down to the right size and shape. We want to address the potential dust that is generated and how its exposure by inhalation should be minimized.
